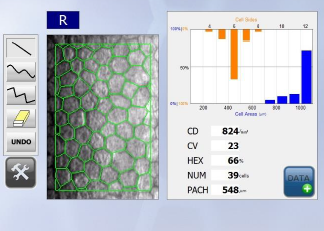

When performing analysis, the CellChek software uses the GREEN "OVERLAY" to highlight the cells included within the analysis. This also includes the dots when performing Center or Flex-Center.
While the overlay is crucial in helping to determine the accuracy of an analysis result, it is often best to omit it from printed or EMR reports. In these cases, it is better to see an unobstructed image of the cells on the report.

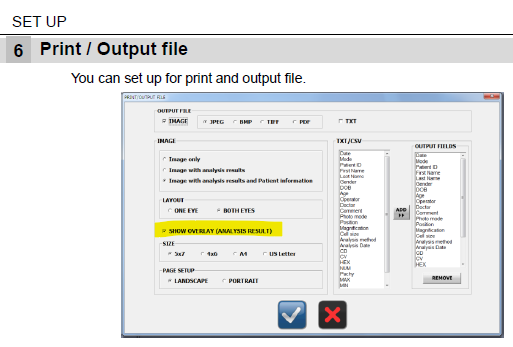

The OVERLAY can be disabled on reports completely within the CellChek software's settings section - under Print / Output file settings.
This information can be found within the SETUP (or preferences) section of your specular's user manual.
When viewing a database record's report, you can also temporarily show/hide the OVERLAY by right-clicking on the image.
